สถานที่กำเนิด:
เจ้อเจียง/จีน
ชื่อแบรนด์:
TORICH
ได้รับการรับรอง:
ISO9001 ISO 14001 TS16949
หมายเลขรุ่น:
ท่อนิกเกิลขัดเงา

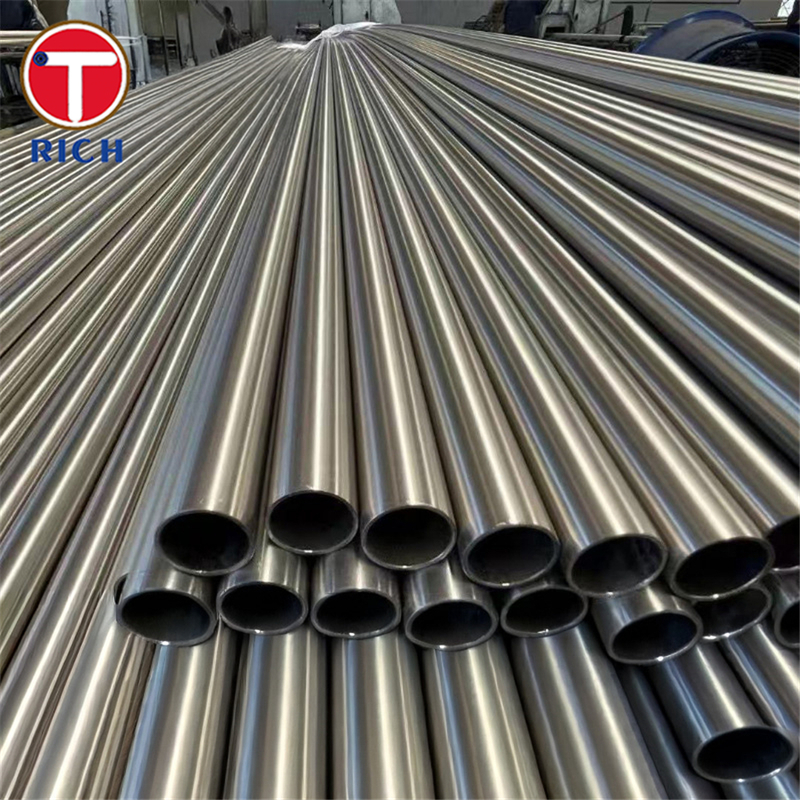

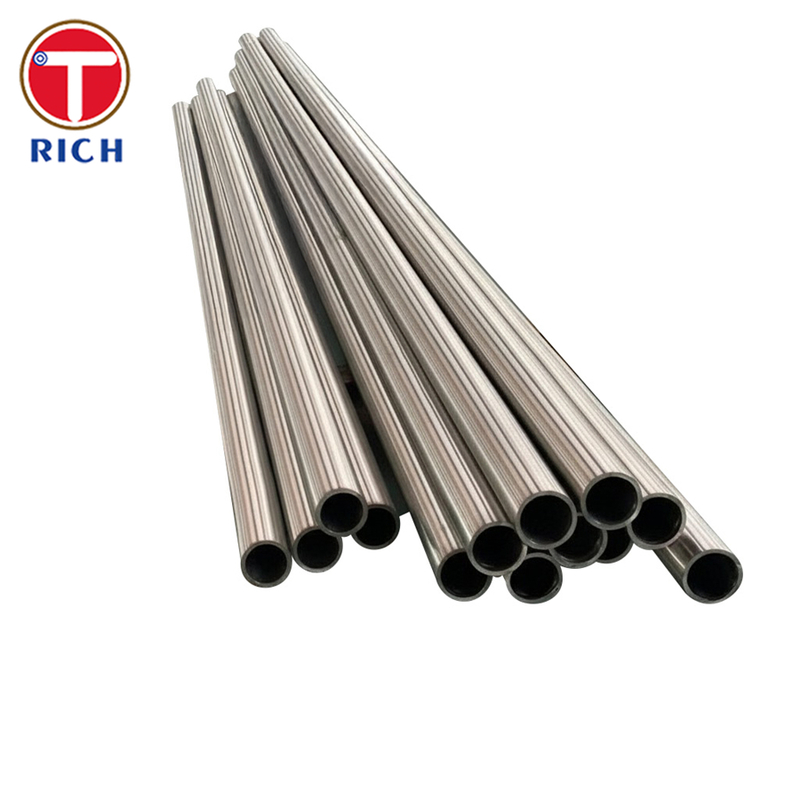

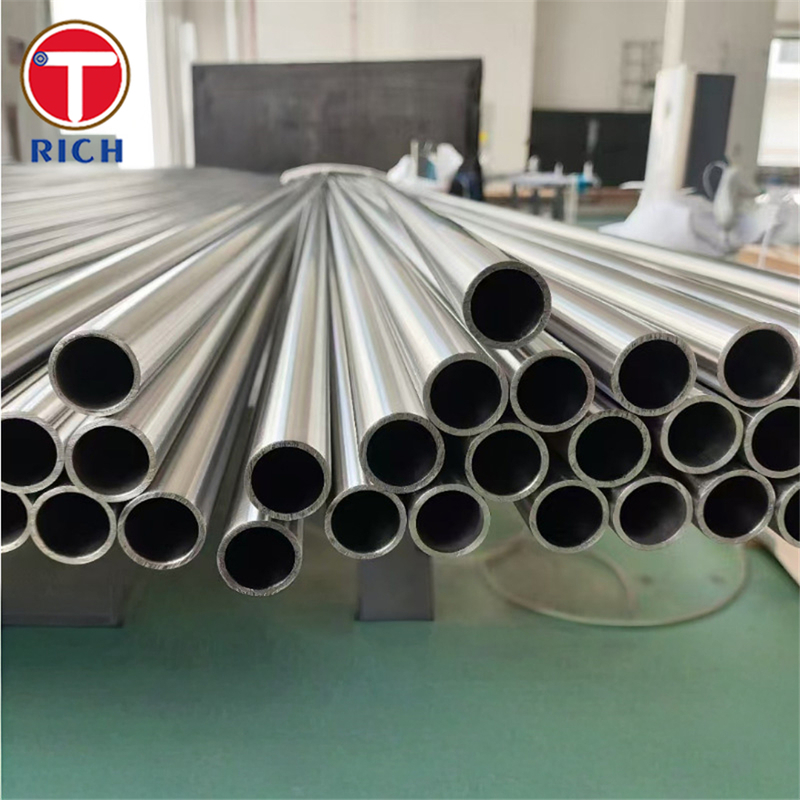

This product is a polished nickel pipe made of Inconel 625, a nickel-based superalloy renowned for its exceptional strength, corrosion resistance, and high-temperature durability, making it ideal for automobile exhaust systems.
| Element | Content (wt%) |
|---|---|
| Nickel (Ni) | ≥ 58 % |
| Chromium (Cr) | 20–23 % |
| Molybdenum (Mo) | 8–10 % |
| Iron (Fe) | ≤ 5 % |
| Niobium + Tantalum (Nb + Ta) | 3.15–4.15 % |
| Cobalt (Co) | ≤ 1 % |
| Manganese (Mn) | ≤ 0.5 % |
| Silicon (Si) | ≤ 0.5 % |
| Aluminum (Al) | ≤ 0.4 % |
| Titanium (Ti) | ≤ 0.4 % |
| Carbon (C) | ≤ 0.1 % |
| Phosphorus (P) | ≤ 0.015 % |
| Sulfur (S) | ≤ 0.015 % |
| Alloy / Variant | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
|---|---|---|---|
| Inconel 625 (general) | ≈ 930 MPa | ≈ 517 MPa | ≈ 42.5 % |
| VDM Alloy 625 (annealed) | — | — | — |
| Altemp 625™ | ≥ 827 MPa | ≥ 414 MPa | 45 % |
| Inconel 625 (ASM data) | 880 MPa | — | — |
| Inconel 625LCF™ | 769.5 MPa | 319 MPa | 63 % |
Solid solution strengthened, with Mo and Nb imparting high strength—no precipitation hardening required.
High fatigue, creep, and thermal fatigue strength over a wide temperature range, from cryogenic up to ~982 °C (1800 °F).
Excellent resistance to oxidation, carburization, pitting, crevice corrosion, and nearly immune to chloride stress-corrosion cracking.
Readily weldable and fabricable with standard processes; excellent machinability in annealed condition.
Common specifications and standards for Inconel 625 include:
ASTM / ASME: B444/B705 (pipe/tube), B704 (welded tube), B443/B446 (plate/bar)
International: EN 2.4856, ISO 6207, AMS 5599/5666/5837/5869, ASME SB443/446
In pipe manufacturing contexts (for polished or bright finishes):
ASTM B167 / B444, ASME SB167 / SB444, ASTM B829, AMS 5581
General Application Domains:
Automotive & Aerospace: Exhaust ducts, turbocharger systems, engine components, thrust-reversers
Marine / Chemical / Energy: Flare stacks, turbine ducting, chemical handling, nuclear components
Automobile Exhaust-Specific Uses:
Exhaust headers/manifolds: Excellent at withstanding cyclic thermal loads and corrosive gas exposure.
Turbocharger housings & downstream ducting: Benefit from oxidation resistance and high-temperature strength.
Downstream exhaust piping: Polished Inconel 625 resists road corrosion (salt and chemical exposure) and maintains structural integrity under thermal cycling.
A: manufacturer,also can do trading.
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock,
it is according to quantity.
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
